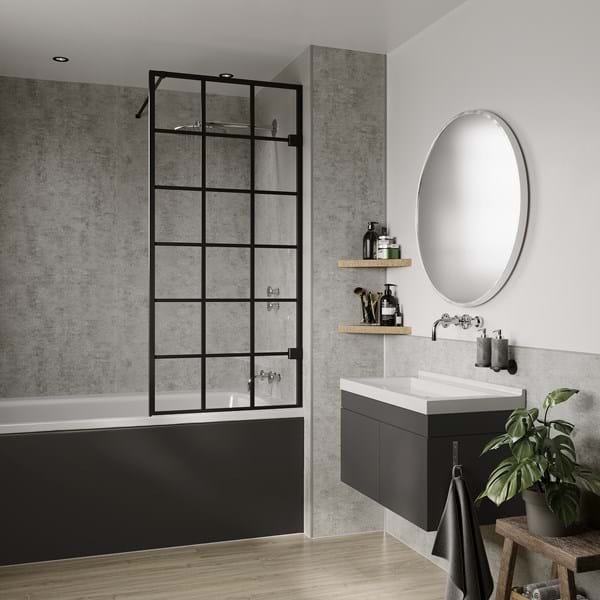

Concrete Elements Linda Barker
This Multi-Panel is available in both Plain Edge and Hydrolock (Tongue & Groove).
The Multipanel Hydrolock connection makes it possible to join two panels together without a mid-joint. Precisely engineered, Hydrolock edge details create a discreet and watertight joint for complete peace of mind.
Important Technical Information
- When manufacturing Hydrolock joints, 20mm is lost from the original panel width, e.g.
2400 x 598mm = 2400 x 578mm finished face size
2400 x 1200mm = 2400 x 1180mm finished face size
- Hydrolock panels are supplied as standard with tongued and grooved edges for easy click-into-place installation
- The accuracy of pattern alignment between panels may vary depending on the scale of the pattern
- Hydrolock panels should be conditioned at normal room temperature for 48-72 hours prior to installation, particularly during cold spells
- Panels should be fitted ‘grooved’ edge first, and the ‘tongued’ edge of the next panel angled in and pushed back until it snaps into place
- A narrow bead of silicone sealant must be applied to the shoulder of the ‘tongue’
- Full fitting instructions should be read prior to installation
